Product Description
Mini type self-propelled road crack sealing machine is suitable for small and medium construction occasions. Low center of gravity chassis design and splash - proof feeding switch design, convenient for safe feeding. Adopt fast change chassis design, can switch at any time according to different working conditions, traction, vehicle loading mode. Fully electric design, fully automatic temperature control system, indirect heating of thermal oil, vertical shaft stirring 360 degrees, Fast heating speed, short waiting time.
According to different types of pavement cracks can choose to use a variety of rubber gun head, in order to achieve the best sealing effect.
Advantage
Self-propelled
Avoid using traction or vehicle-mounted vehicles
With heating hose
Small capacity of 200 L
Application

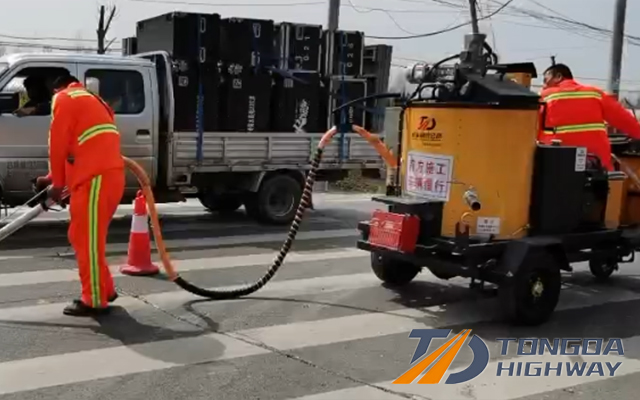

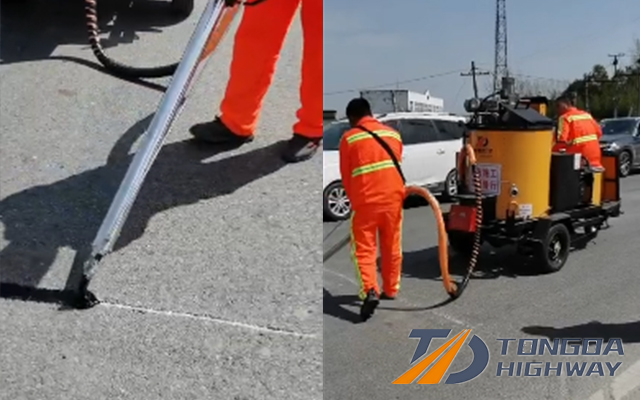

Self-propelled asphalt crack sealing machine mainly used for irregular cracks of asphalt pavement, concrete pavement, bridge expansion joints, sewer, gas pipe buried and paving road links waterproof processing.
Technical Parameter
Product model | TDZX-200 |
Hopper Volume | 200L |
Weight | 1100kg |
Power system | Vehicular/traction/self propelled |
Plasticizing capacity | 150L/h |
Plasticizing time | 30-45min |
Flow rate | 0~60L (CVT) |
Burner brand | BECKETT |
Burner calorific value | 65000Kcal/h |
Heating | Heat transfer oil |
Heat transfer oil | 150L |
Mixing | Motorized |
Temperature control | Constant temperature control |
Burner diesel tank capacity | 80L |
Length of hose tube | 5m |
Working speed | 0-10km/h |
